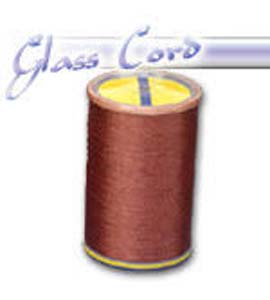

Fiber Glass Cord

Name: Fiber Glass Cord
Brand: YUSHENG ENTERPRISE LIMITED

Dipped glass cord has the advantages of good flame retardant, high temperature resistance, electrical insulation, high strength, good chemical stability and so on. It is usually designed and developed to be compatible to CR, EPDM, HNBR, or other basic rubber materials. Looking for fiber glass cord? Come to inquire YUSHENG.

Request A Quote

Specification of Fiber Glass Cord

Main Specs.

EC9 110 1/3 1/6 1/11 1/13 3/15

ECG 150 3/11 3/13

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	EC9 110 1/0 S/Z	EC9 110 1/0 S/Z	EC9 110 1/0 S/Z
1	Breaking strength min	N	78	73	73
2	Elongation at break	%	2.5±0.8	2.5±0.8	2.5±0.8
3	Loss on ignition	%	19.0±3.0	19.0±3.0	19.0±3.0
4	Linear density	g/1000m	135±15	135±15	135±15
5	Diameter	mm	0.23±0.05	0.23±0.05	0.23±0.05
6	Ply	TPM	--	--	--
7	Cable	TPM	60±5	144±12	168±12
8	Adhesion (T-test)	N/cm	≥70	≥70	≥70
9	Drapability	%	/	/	/

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	EC9 110 1/2 S/Z	EC9 110 1/3 S/Z		EC9 110 1/3 S/Z
1	Breaking strength	N	150	210	200
2	Elongation at break	%	2.5±0.8	2.6±0.8	2.6±0.8
3	Loss on ignition	%	19.0±3.0	18.5±2.5	18.5±2.5
4	Linear density	g/1000m	270±30	400±20	410±20
5	Diameter	mm	0.45±0.08	0.55±0.08	0.55±0.08
6	Ply	TPM	142	142	142
7	Cable	TPM	144±12	144±12	240±20
8	Adhesion (T-test)	N/cm	≥110	≥160	≥160
9	Drapability	%	＜1.0	＜1.0	＜1.0

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	EC9 110 1/6 S/Z	EC9 110 1/10 S/Z		EC9 110 1/10 S/Z
1	Breaking strength	N	420	640	640
2	Elongation at break	%	2.7±0.7	2.7±0.7	2.7±0.7
3	Loss on ignition	%	18.5±2.5	18.5±2.5	18.5±2.5
4	Linear density	g/1000m	800±60	1350±95	1350±95
5	Diameter	mm	0.8±0.08	1.05±0.07	1.05±0.07
6	Ply	TPM	83	83	83
7	Cable	TPM	83±8	83±8	118±12
8	Adhesion (T-test)	N/cm	≥165	≥220	≥220
9	Drapability	%	＜1.0	＜2.0	＜2.0

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	EC9 110 1/11 S/Z	EC9 110 1/13 S/Z		EC9 110 1/14 S/Z
1	Breaking strength	N	690	830	850
2	Elongation at break	%	2.7±0.7	2.9±0.7	2.7±0.7
3	Loss on ignition	%	18.5±2.5	18.5±2.5	18.5±2.5
4	Linear density	g/1000m	1500±105	1765±65	1885±85
5	Diameter	mm	1.1±0.07	1.2±0.08	1.25±0.1
6	Ply	TPM	83	83	83
7	Cable	TPM	83±8	83±8	83±8
8	Adhesion (T-test)	N/cm	≥240	≥270	≥270
9	Drapability	%	＜2.0	＜2.0	＜2.0

No.

Item

Unit

Dipped Glass Fiber Cord

ECG 150 3/0 S/Z

ECG 150 3/2 S/Z

ECG 150 3/3 S/Z

Breaking strength min

138

177

Elongation at break

2.5±0.8

2.6±0.8

Loss on ignition

19.0±3.0

Linear density

g/1000m

130±25

255±25

380±25

Diameter

0.3±0.04

0.45±0.08

0.6±0.2

Ply

TPM

Cable

TPM

160±20

144±16

144±20

Adhesion (T-test)

N/cm

≥70

≥110

≥160

Drapability

＜1.0

No.

Item

Unit

Dipped Glass Fiber Cord

ECG 150 3/6 S/Z

ECG 150 3/10 S/Z

ECG 110 3/11 S/Z

Breaking strength

≥441

≥604

≥686

Elongation at break

2.7±0.7

Loss on ignition

19.0±2.5

Linear density

g/1000m

780±50

1285±100

1400±80

Diameter

0.8±0.2

1.1±0.2

1.15±0.2

Ply

TPM

Cable

TPM

80±8

Adhesion (T-test)

N/cm

≥165

≥220

≥240

Drapability

＜1.0

＜2.0

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	ECG 150 3/13 S/Z	ECG 150 3/0 S/Z		ECG 150 3/2 S/Z
1	Breaking strength	N	≥784	≥69	≥138
2	Elongation at break	%	2.9±0.7	2.5±0.8	2.5±0.8
3	Loss on ignition	%	19.0±2.5	16.5±3.0	16.5±3.0
4	Linear density	g/1000m	1670±100	127±25	250±25
5	Diameter	mm	1.25±0.2	0.3±0.04	0.45±0.08
6	Ply	TPM	80	-	80
7	Cable	TPM	80±8	160±20	144±16
8	Adhesion (T-test)	N/cm	≥270	≥70	≥110
9	Drapability	%	＜2.0	--	＜1.0

No.	Item	Unit	Dipped Glass Fiber Cord
No.	Item	Unit	ECG 150 3/3 S/Z	ECG 150 3/6 S/Z		ECG 150 3/10 S/Z
1	Breaking strength	N	≥177	≥441	≥604
2	Elongation at break	%	2.6±0.8	2.7±0.7	2.7±0.7
3	Loss on ignition	%	16.5±3.0	16.5±2.5	16.5±2.5
4	Linear density	g/1000m	370±25	730±60	1258±100
5	Diameter	mm	0.53±0.08	0.8±0.2	1.1±0.2
6	Ply	TPM	80	80	80
7	Cable	TPM	144±20	80±8	80±8
8	Adhesion (T-test)	N/cm	≥160	≥165	≥220
9	Drapability	%	＜1.0	＜1.0	＜2.0

Application of Fiber Glass Cord

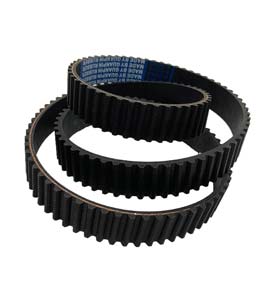

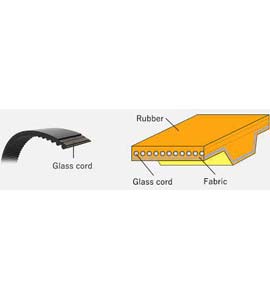

It mainly used in automobile timing belt and industrial timing belt, and it is an essential fiber in fields of automobile, household appliances, industrial machinery and other fields.
